MITNIK/MMP - MMP80C/100C/150C/200C Manual Electrical Portable Hydraulic Track Link Pin Press Machine For Excavator&Dozer C Type Portable Track Pin Pusher

The application of technology plays an important role in the developing and manufacturing process of the product. Widely used in the application scene(s) of Construction Machinery Parts, the product has won wide popularity. The team uses the most advanced production equipment and independent research and development technology to minimize MMP80C/100C/150C/200C Manual Electrical Portable Hydraulic Track Link Pin Press Machine For Excavator&Dozer development cycle and ensure the high quality and strong reliability of the product. MITNIK/MMP is a solution for all your buying needs. We can offer you the prices that you need and quality that is good for you.

PRODUCTS DESCRIPTION

Why TO Choose The MITNIK PARTS

Track Link Press Machine for Excavator&Bulldozer Repair:

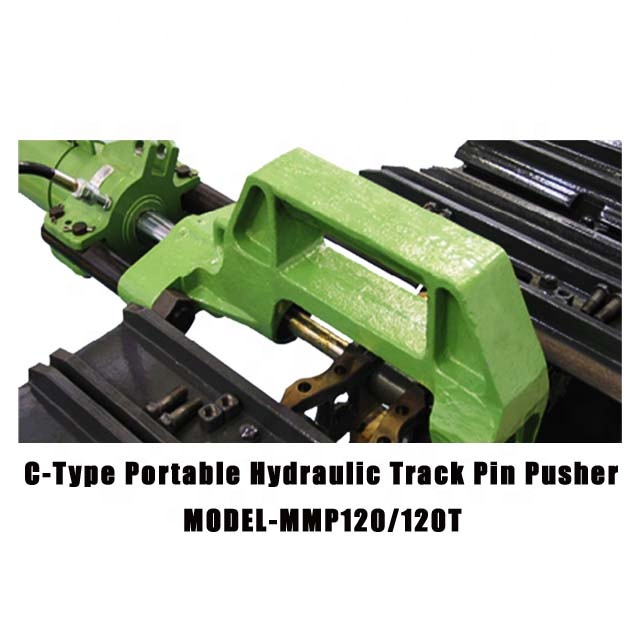

Track Link Pin Pusher /Installer is specially designed for tracked machines, tractors,loaders, shovels, excavators, etc. It is
suitable to use with JCB, Caterpiller, Komatsu and Poclain make track machines. It is safe and simple to use. Hydraulic force ensures smooth operation, thereby avoiding damage to the components of the track assembly.

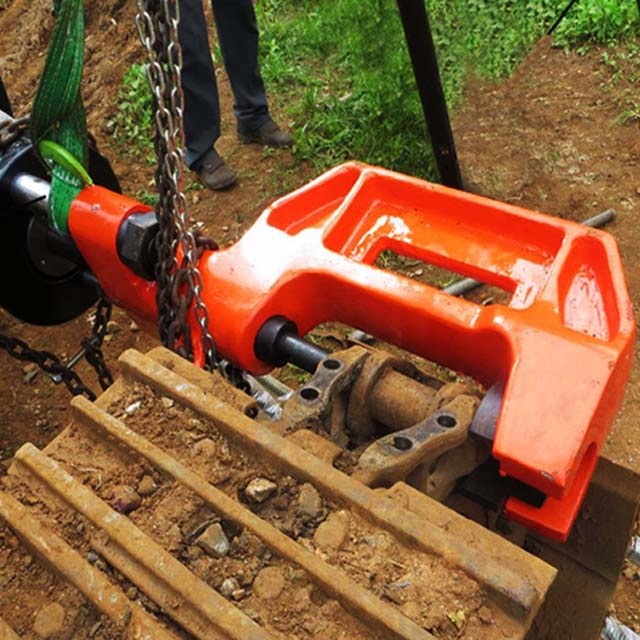

The track link pin press is a special tool by utilizing the conversion from hydraulic energy into mechanical energy to

dis-assembly the track pin of a crawler excavator. Manual, electrical or manual and electrical pump is used as a power source to move the hydraulic jack forward so that the pin can be removed smoothly. Instead of gas cutting and hammering, it ensures that the track is intact. It is an ideal special tool for track excavator maintenance and assembly.

Track Pin Press Pusher Features :

1.Portable for in field repair .

2.Double acting hydraulic cylinder for one-stroke removal or installation.

3.Tooling sets for pin sizes adjustments.

4.Storage case to house all components.

5.Cast steel frame construction for extended durability.
6.Eliminate dangerous removal methods.

7.Avoid machine component damage.

8.Reduced labour hours.

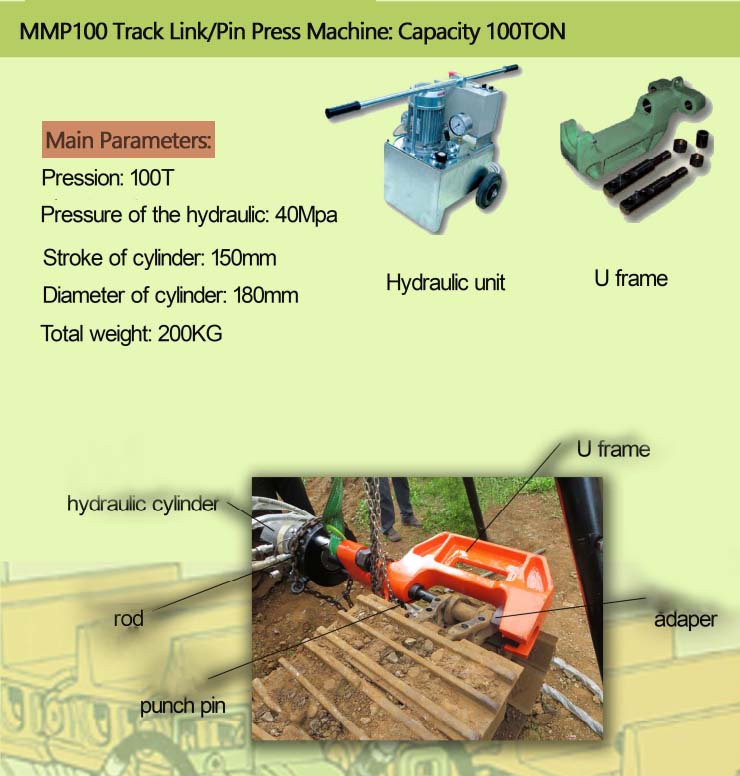

1OOT MMP Track Link Press Machine Parameters
1	Nominal force of oil cylinder	KN	1000
2	Press stroke	mm	180
3	Rated pressure	MPA	40
4	Center height	mm	100
5	Motor power	KW	4
6	Rated flow	ml/r	5
Kindly Note: 1. Dismantling tooling includes: Forcng pin: Φ70x150mm&Φ70x100mm; Guide pin: For excavators<32T: Φ25x180mm&Φ28x180mm&Φ30x180mm&Φ40x180mm; For 40T 2. Flow of electric pump:5L/min Pump capacity: 16L (hand pump);32L (electric pump)

Performance
1.Portable design makes you press pins at your work places more easily.;
2.Using reasonable "U" frame to ensure the intensity of the machine;
3.Hydraulic power and bidirectional hydrauic valve make it easily to operate;
4. The large diameter cylinder can provide a force up to 100T.

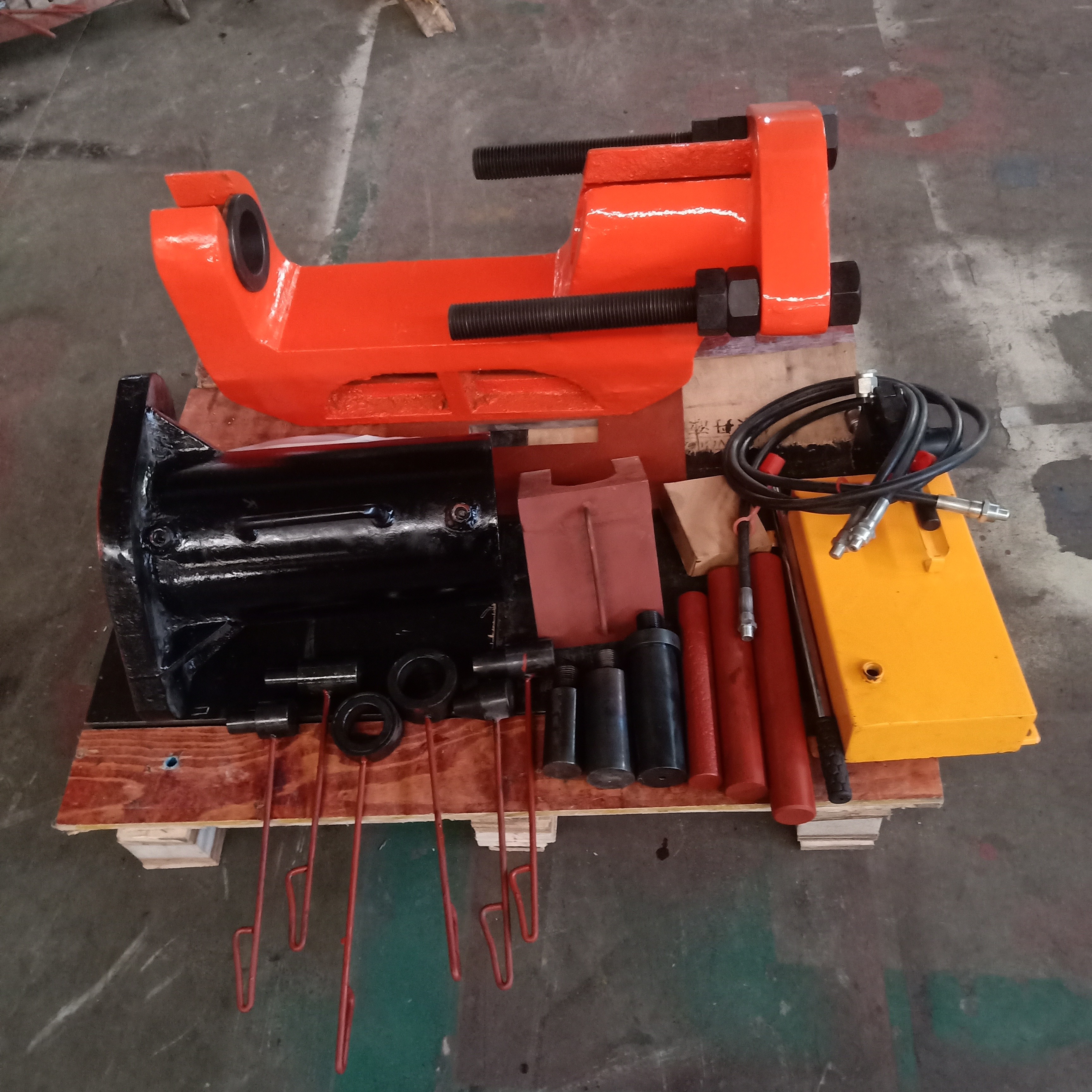

MMP Track Link Press Machine List With All Tools
1	Pressure chain machine host	1 set
2	Flashlight dual-use pump station	1 set
3	Tubing	2 pcs
4	Pressure gauge	1 pcs
5	Seals	1 set
6	Increase pressure bar	2 pcs
7	Pressure plate	1 pcs
8	Positioning plate	1 pcs
9	Chain positioning pin	1 pcs
10	Dismantling tooling	6 pcs
11	Instruction Certificate	1 pcs

PRODUCT SPECIFICATIONS

RAND

MOSTLY FULL UNDERCARRIAGE PARTS CAN OFFER

BULLDOZER

D20

D30

D31

D37

D40

D41

D45

D50

D60

D65

D68

D75

D80

D85

D150

D155

D275

D355

D3C

D3D

D4C

D4D

D4H

D5

D6C

D6D

D6H

D7G

D8K

D8N

D9N

D10N

D11N

KOMATSU

PC30

PC40

PC45

PC60

PC75

PC100

PC120

PC150

PC200

PC220

PC300

PC350

PC400

CATERPILLAR

E70B

E110

E120B

E215

E235

E307

E311

E312

E322

E180

E240

E200B

E320

E300

E300B

E330

E325

HITACHI

EX30

EX40

EX60

EX100

EX120

EX200

EX220

EX270

EX300

EX400

EX600

UH043

UH052

UH53

UH07

UH081

UH082

UH083

FIAT-HITACHI

FH120

FH130

FH150

FH200

FH220

FH270

FH300

VOLVO

EC55

EC130

EC150

EC200

EC210

EC240

EC290

EC360

DAEWOO

DH55

DH130

DH180

DH200

DH280

DH300

DH320

HYUNDAI

R60

R130

R200

R210

R220

R290

R320

R914

KATO

HD250

HD400

HD450

HD700

HD770

HD820

HD1250

KOBELCO

SK40

SK60

SK100

SK120

SK200

SK220

SK04-2

SK07

SK07N2

SK09

SK12

SK14

SK300

SK310

SK400

JCB

JS70

JS75

JS110

JS130

JS160

JS180

JS200

JS220

JS240

JS260

JS300

JS330

SUMITOMO

SH70

SH100

SH120

SH160

SH200

SH260

SH265

SH280

SH300

SH340

LS2650

LS2800

LS3400

LS4300

MX8

SE200

SE210

SE280

MX292

SE350

MITSUBISHI

MS110

MS120

MS140

MS180

Please verify part number prior to order.
