Quality assurance manufacturer of Excavators&Bulldozer Parts And Other Machinery Parts.
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Brand Name: MMP
Warranty: 1 Year, 12-24Months
Model/Part No.: 9W2452 Bucket Teeth For D8,D9,D8N CAT 330
Material: Q345B/NM400
Hardness: HRC 47-54HRC
Technique: Forging Casting/Lost Wax Casting
Suitable: 1.5t-45t Excavator/Bulldozer/Wheel Loader
Why TO Choose The MITNIK PARTS
All MMP Bucket Tooth Parts Follow OEM Strictly? Technical Specifications?:
As a manufacturer of ground engaging tools (G.E.T.) spare parts, MITNIK specializes in developing, manufacturing and providing bucket teeth and adapters for earthmoving and mining equipment.
MITNIK Bucket Teeth Quality:
We focus on providing parts of lowest cost per operation hour which are longer wear life time and competitive price for our customers' using especially in mining industry. Deco bucket teeth are made from high-quality steel alloy strategically placed wear material to provide maximum wear resistance.
| Material | Alloy steel/Carbon steel etc, such as T1,T2,T3,T4 |
| Heating Treatment | Quenching and tempering treatment |
| Teeth Hardness | Teeth : HRC47-52 ,Impact value >=16J |
| Adapter Hardness | Adapters : HRC34-38 ,Impact value >=25J |
| Colors | Yellow/Greem/As customers requested |
| Work Condition | With excellent elongation and tensile strength, suitable for many different hard working conditions. |
| Technique | Forging / casting |
| Application | Excavator, Loader,Bulldozer,etc |
| Warranty time | 12-24 months |
| Certification | ISO9001 |
| Delivery Time | Within 5-17 days after contract established |
| Quality Control | ISO9001 quality system is implemented in our factory to guarantee the quality in all level; Easy assembling and disassembling, only one operator is needed; Provides more wear material and greater strength than long tip; Has a streamlined-profile for better penetration ; Extra long wear life time · Less machine downtime; Low cost per operation hour · Produced by lost wax casting; High-quality steel alloy material; Heat treated. |
| MITNIK MACHINE PARTS-MMP Excavator Bucket Teeth Part No. | ||||
| Part number | Measurement | Description | Weight/kg | Model |
| 8J6207 | J200 | Bucket Tips | 4.8 | 416,438,910 |
| 9N4253 | J250 | Bucket Tooth | 4.8 | E311,E312,916,939 |
| 1U3351 | J350 | Bucket Tooth | 4.8 | E320,E322,966D,980F |
| 1U3302WT | J300 | Bucket Tooth | 4.9 | |
| 9J4359 | J350 | Bucket Tooth | 4.9 | E320,E322,966D,980F |
| 1U3302RCL | J300 | Bucket Tooth | 5.0 | E200,E315,944,966C |
| 1U3302WTL | J300 | Bucket Tooth | 5.0 | E200,E315,944,966C |
| 1359308 | J300 | Bucket Tooth | 5.0 | E200,E315,944,966C |
| 9N4302 | J300 | Bucket Tooth | 5.1 | E200,E315,944,966C |
| 5V1784 | One bolt corner | 5.2 | 955 | |
| 5V1783 | One bolt corner | 5.2 | 955 | |
| 1835300 | J300 | Bucket Tooth | 5.2 | |
| 4T2253 | J250 | Bucket Tooth | 5.2 | E311,E312,916,939 |
| 1U3352TL | J350 | Bucket Tooth | 5.3 | E320,E322,966D,980F |
| 9J8910 | R300 | Ripper Tooth | 5.3 | D4,963,955,951,160H,140,130,14,12 |
| 9W2359 | J350 | Bucket Tooth | 5.3 | E320,E322,966D,980F |
| 6Y0309 | R300 | Ripper Tooth | 5.3 | D4,963,955,951,160H,140,130,14,12 |
| 227-8664 | CAT 423 | Unitooth | 5.4 | 423,424 |
| 227-8665 | CAT 423 | Unitooth | 5.4 | 423,424 |
| 1U3352P | J350 | Bucket Tooth | 5.4 | |
| 1U1254 | J250 | Teeth adapter | 5.4 | 930K,938M,928G,930G,924H/G,924GZ,926M,938 916,939 |
| 5B6251 | Ripper shank | 5.5 | ||
| 2V6628 | Compactor Feet | 5.5 | 825C,835 | |
| 1U3252PT | J250 | Bucket Tooth | 5.5 | |
| 4T1300 | J300 | Bucket Tooth | 5.8 | E200,E315,944,966C |
| 31280D | Shank | 6.0 | ||
| 9N4303R | J300 | Bucket Tooth | 6.1 | |
| 1U3301 | 4 | TEETH SHORT |
| 1U3302 | 4.3 | TEETH STANDARD LONG |
| 1U3302 | 4.7 | TEETH STANDARD LONG |
| 1U3302TL/9W8309 | 4.3 | TEETH TIGER |
| 1U3302WTL/135-9308 | 4.8 | TEETH TWIN TIGER |
| 1U3302RC | 4.9 | TEETH ROCK |
| 1U3302RC-2 | 4.8 | TEETH ROCK |
| 1U3302RCL | 4.95 | TEETH FISH SCALE |
| 1U3302R/9J4302 | 4.5 | TEETH ROCK |
| 1U3302SYL | 5.2 | TEETH SYL |
| 1U3351 | 5.5 | TEETH SHORT |
| 1U3352 | 5.6 | TEETH STANDARD LONG |
| 1U3352 | 5.8 | TEETH STANDARD LONG |
| 1U3352 | 6 | TEETH STANDARD LONG |
| 1U3352R/9J4352 | 6 | TEETH ROCK |
| 1U3352TL/9W2359 | 6 | TEETH TIGER |
| 1U3352WTL | 7 | TEETH TWIN TIGER |
| 1U3352RC | 7 | TEETH ROCK CHISEL |
| 1U3352RC | 8.2 | TEETH ROCK |
| 1U3352RCK | 6.5 | TEETH ROCK |
| 1U3352SYL | 7.8 | TEETH SYL |
Please verify part number prior to order.
Thanks for viewing our listings. Please click "Ask A Question", or call us if you have a parts need that you do not see listed here.
We will do our best to locate the parts you need, and make every effort to save you money.
For parts information in English please CONTACT US
MITNIK MACHINE PARTS(MMP BRAND) is the worldwide leader in replacement parts and original parts and accessories for Engineering Machine, Construction Machine, Industrial Truck and Agricultural Equipment over 20 years old.

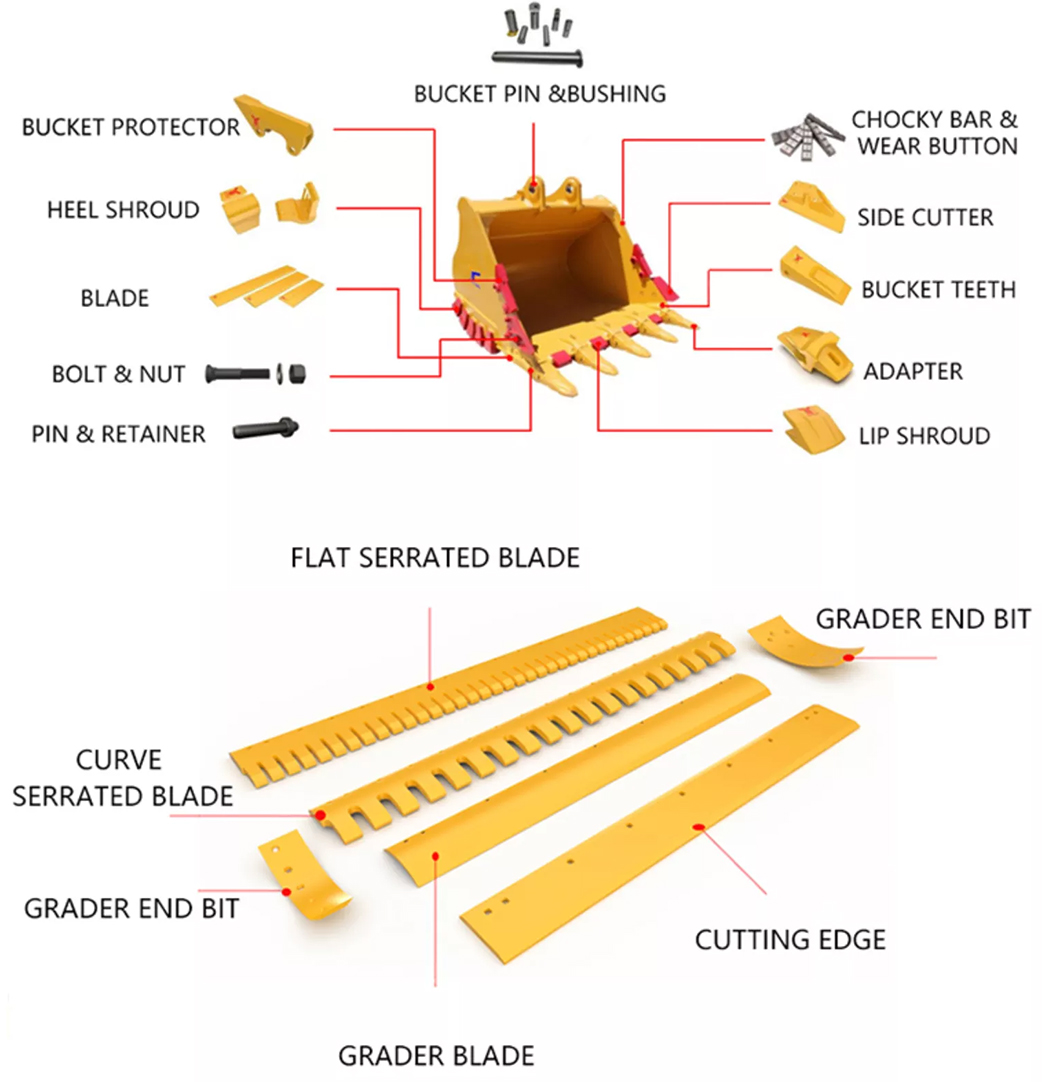

MITNIK MACHINE PARTS have set up a one-stop shopping platform for engineering construction machinery parts, and the products:involve: excavator&bulldozer undercarriage (track roller, carrier roller, track link, track idler, track link assy, track shoe, segment group, sprocket, bushing, pin, bolt&nut), engaging tools(bucket teeth, bucket tip, bucket, cutting edge, end bit), engine parts (excavator&bulldozer engine parts, engineering truck engine parts etc..), hydraulic parts (hydraulic pump, hydraulic cylinder, quick couple, hydraulic track link pusher machine), dump truck parts, concrete machine parts( easy wearing parts, blades, mixer, shaft, electrical parts).
With more than 20 years experience on heavy duty machinery spare parts sales, our important customers are mainly distributed in South- East Asia, Mid-East, South America and some East European countries.
Pre-sale Service :
1.You must worry about the products can fit for your parts or not, please don;t worry becaue we double check
with the customers for drawing and machine model, and part no. befor ordering.
2.Excavator&Bulldozer spare parts in full-scale are available;
3.100% quality assurance,develop and manufacture follow original ones;
4. Quick response within 24 hours;
Sale Service:
1. Small order allowed;
2. Reasonable Price and timely delivery;
3. Original packing, neutral packing or customized packing;
4. We will reugularly update customers order producing situation by videos or pictures
5. After finished, we will inspecation all parts in case of any mistakes.
6. We will prepare all documents for custom clerance, such as FORM E, ORINAL, SGS any documents requested.
After-Sales Service:
1.Positive customer feedback from abroad market;
