MITNIK Track Group/SALT/PPR Structure/Track Shoe Assembly/Track Chain Assembly. MITNIK are committed to providing qualified track groups according to OEM specifications.


MITNIK full range of track groups has been fully proven in various industries (mining, forestry, quarrying, construction and agriculture, etc.) and is suitable for all brands and models of excavators and grabbers.


There are three main types of track groups, which are widely used in different applications: dry type, sealed and lubricated type, and sealed and lubricated type. The first dry type will be rarely used in the future. The sealed and lubricated type is widely used in excavators due to its longer wear life, while the sealed and lubricated type is becoming more and more popular and widely used in other demanding applications of bulldozers. Compared with the lubricated type, its service life is increased by 30%-50%. The track group consists of track shoes, track links, pins, bushings and other components, which are crucial to the wear life of the track group. We use advanced processing technology to ensure precise dimensional tolerances and perfect fit. In addition, after quenching and tempering, induction hardening is performed on the track surface of the chain link, which has excellent wear resistance and fatigue resistance.


MITNIK PARTS can provide customized track sets with PPR structure upon request, with various designs of track shoes.

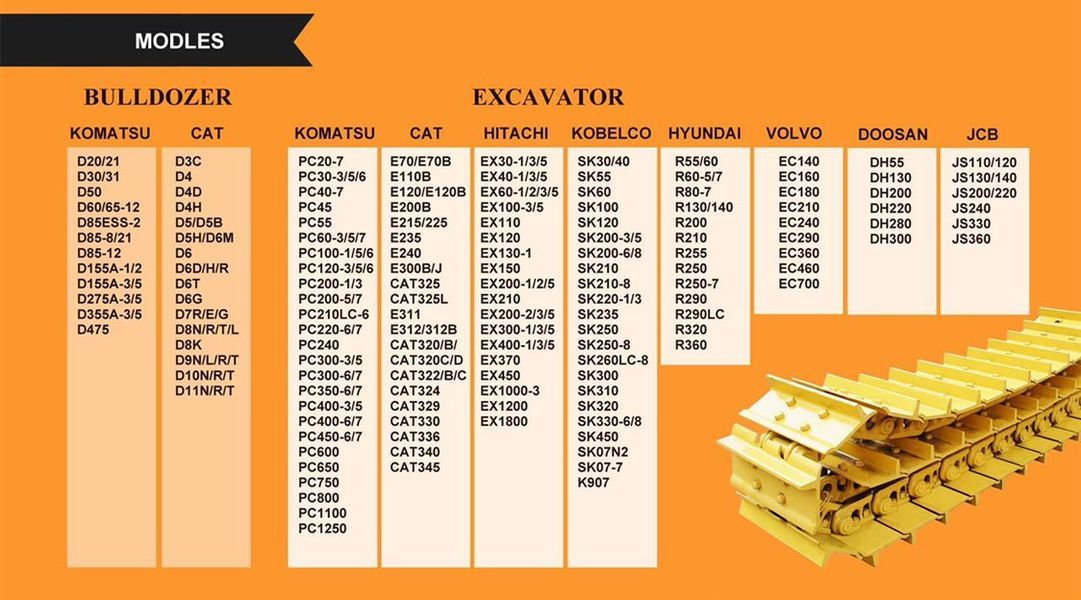

Typical brands and models: Caterpillar (D11/D10/D9/D8), Komatsu (D475/D375/D355/D275/D155/D85ESS), Hitachi, Daewoo, Doosan, John Deere, Kobelco, Hyundai, Liebherr (PR764/PR765), Sumitomo, Volvo, etc.


Related products: Sealed Lubricated Tracks (SALT) for D8, D9, D10, D11, D155, D275, D355, D375 and D475


      Professional Excavator&Bulldozer Aftermarket Undercarriage Parts ManufacturerFactory Supplying Directly, Super Quality with Competitive Price!




Product Specification

Product Name: Dozer Undercarriage Track Group Crawler Chain Track Shoe Undercarriage Parts for Caterpillar D3,D4,D5,D6,D7,D8,D9,D10,D11

Technical: Forging/Casting

Surface Hardness:HRC52-58, Deepth:8mm-12mm

Colors:Yellow

Finishing:Smooth

Applicable Industries:Machinery Repair Shops, Construction works

Material: 35MnB

Related Products: Track Link, Track Pad, Track Roller, Idler. Sprockets, Carrier Roller, Tensioner for Excavators And Dozers

APPLICABLE  MACHINE MODELLINK PITCH(mm)LINK QUANTITYLINK HEIGHTTHICKNESS OF SHOE
SD16,D60/D65, SEM816/81820337L/39L/42L/44L11612/14/15
D65E-12/D85ESS-2/D65PX-1220339L/42L/45L12512/14/15
D6R/D6HHD,PR734/PR73620339L/40L/41L/45L13212/14/15
D7G,D80/D85/D85ESS-1,SD22/23,  LIUGONG 230,SEM822D21638L/39L/40L125/12914/17/19
D8N//R/T/L, PR75621644L/45L15014/17/19
SD32,D155-122841L13817/19
D155-2/5/622841L14417/19
D9L,PR75422847L/44L16117/19
D9N/R/T,PR76424043L/44L16617/19/20
D35526039L/42L15620.5/23
D275-526039L16620.5/23
D10N/R/T,PR77626044L18120.5/23
D375-5/6, PR78428040L/41L18123
D11/N/R/T31741L19825/28
D475-231739L19925/28
D475-531741L19925/28

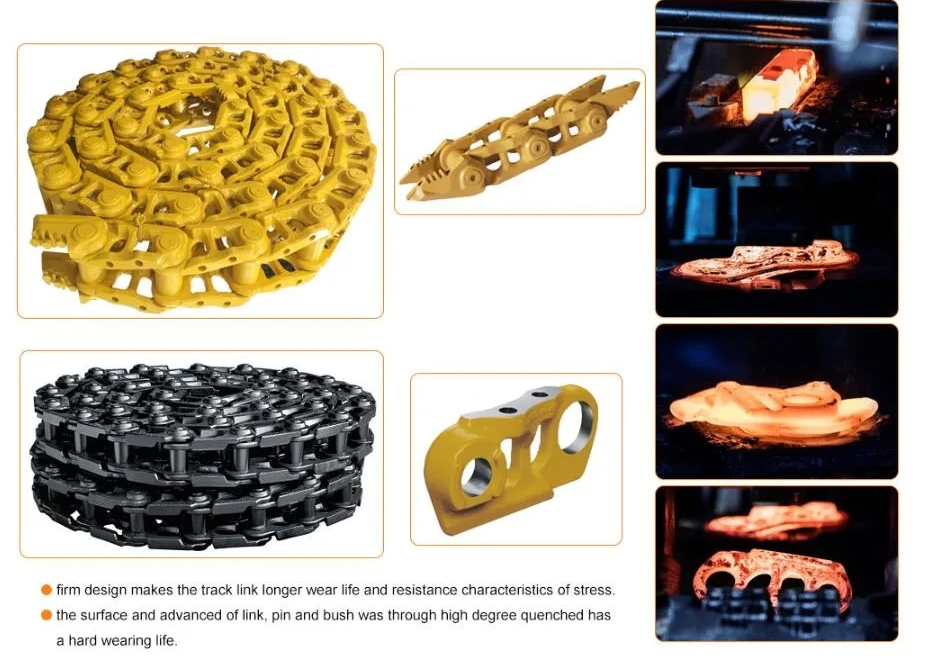

Detailed Showcase

Choose MITNIK Undercarriage Parts-Better Quality, Longer Using Life!

In order to firm design makes the track link longer wear life and resistance characteristics of stress.

The surface and advanced of link, pin and bush was through high degree quenched has a hard wearing life.

Confirming Dimensions With Us Before Ordering
Make Sure the Parts Matching with Your Machine
