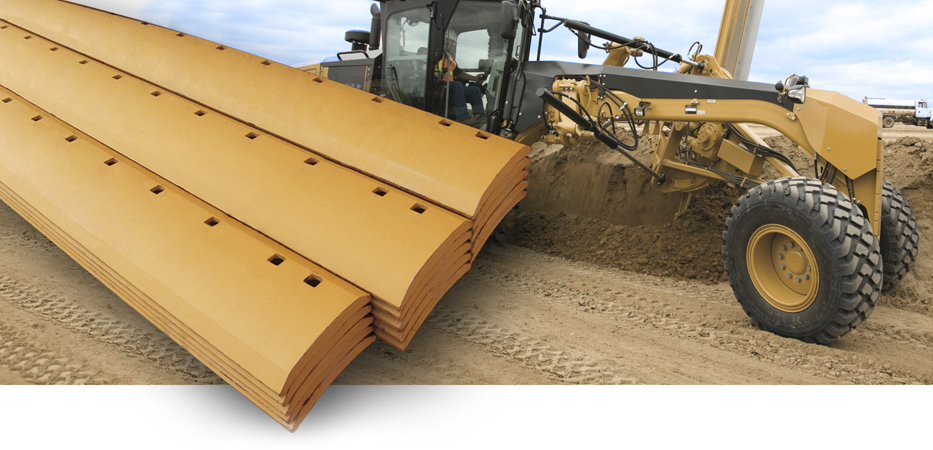

7T1633 Caterpillar Grader Blade-5/8"x6"x6' w/Bolts & Nuts. Caterpillar Cutting Edge Parts 5B5564 7T1633, 8-hole Caterpillar Bolt Cutting edge, High carbon and boron steel 16mm blade, custom designed Tractor double bevel curved Flater blade and edge, ground meshing Tool Spare Parts Factory
Caterpillar Cutting Edge Parts 5B5564 7T1633
Component number 7T1633/5B5564/5B-5564
Measurement :
7T1633 Curved Cutting Edges Fit for Caterpillar D9 compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MITNIK/MMP summarizes the defects of past products, and continuously improves them. The specifications of 7T1633 Curved Cutting Edges Fit for Caterpillar D9 can be customized according to your needs.
1828 x152x16mm
Hardness :260~320 or 380~450
Weight :30 kg
Aperture :5/8"
Number of holes. : 8
Brand name Indicates a user-defined label
Change the brand Caterpillar
Machine model crawler grader
Product type: Grader blade
Material :C80/16Mn / 30 mnb
High carbon steel (C80); Boron steel (30MnB)
Hardness :HB320~360 or HB440~480
Buyers have always reached the best quality providing and reliable Replacement 7T1633 Caterpillar Grader Cutting Edges&Blades with reasonable price, excellent performance and excellent quality, it has won wide recognition from customers. Since the beginning,XIAMEN MITNIK M&E CO. , LTD have been sticking to the business principle of 'integrity' and bearing the mind of 'offering customers the best of us'. We are fully confident that we will make a great success in the future.
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining, Other | Showroom Location: | None |
| Place of Origin: | Fujian, China | Compatible Brand: | CATERPILLAR |
| Year: | 2023 | Working hours: | 4001-6000 |
| Model/Part No.: | Cat 7T1633 | Material: | Carbon HRC280-320HB Boron HRC440-520HB |
| Hardness: | HB440~480 | Technique: | Forging |
| Warranty: | 12-24Months | Suitable: | Bulldozer/Wheel Loader/Grade Motor |
| Color: | Yellow or As required | Yielding Point: | 1440N/mm2 |
| Packing: | Plywood Pallet with wrapping/Customization | MOQ: | 1 pcs |
Why TO Choose The MITNIK PARTS
As a manufacturer of Excvator&Bulldozer spare parts, MITNIK specializes in developing, manufacturing and providing all kinds of weld in and Bolt on cutting edges
and end bits are available for all makes and models of Excavators,Bulldozers,Loaders, Scrapers, Graders and Compactors. We can fabricate any type of edge to best suit your requirements.
MITNIK MACHINE PARTS-MMP Motor Grader Blades manufactured from Boron Steel Alloy are heat treated and tempered to exact specifications to ensure the best combination of wear and impact resistance.
Grader blade | |||
Material | High-carbon steel (C80); Boron steel (30MnB) | Part No. | 5B5562 5B5564 5D9553 5D9554 5D9556 5D9557 5D9558 5D9559 5D9561 5D9562 Motor Grader Blade Cutting Edge Blade |
Color | Yellow or Customer Required | Size | 1828mm(6ft)*152mm*16mm 13holes*5/8" |
Logo | MMP or Customer Required | G.W. | 30.3 kg |
Hardness | HB280-500 | N.W. | 32.3 kg |
MOQ | 1 pc | Packing | Plywood pallet |
Delivery time | 25-30 days (one container) | Suitable machine | Excavator/Bulldozer |
Certificates | ISO45001,GB/T24001, SGS | Payment | Ali Trade Assurance; T/T; L/C; Western Union ... |
Heavy machinery spare parts Grader Blades Cutting Edges CAT 4T2242 4T3007 4T3036 4T2244 4T2231 4T2236, 4T2244 4T-2244 CATERPILLAR 72″ CURVED GRADER BLADE, 13 Holes 7ft Long Curved Edges fit Caterpillar Motorgrader 7D1576, 13 Holes 6ft Long CAT Double Bevel Curved Blades 5D9553
The best curved edge choice is often the impact tolerate through hardened edge. Curved edges penetrate the roadway better than flat edges while carrying existing material forward to leave a smooth even surface. 4T2236 China Heat Treated 17 Hole Grader Blade, 4T2236 4T-2236 17 Holes Cutting Edges for Grader Models 14G 14H 160H 163H.
Grader blades:
P/N Dimension(mm) Holes Bolt size P/N Dimension(mm) Holes Bolt size
5D9553 1828X152X16 13 5/8″ 4T2231 1828X203X25 13 3/4″
5D9554 2133X152X16 15 5/8″ 4T2233 2133x203x25 15 3/4″
5D9558 1828X203X19 13 5/8″ 4T2237 2438x203x25 17 5/8″
5D9559 2133X203X19 15 5/8″ 5B5564 1828x152x16 8 5/8″
5D9561 2133X203X16 15 5/8″ 5B5562 2133x152x16 9 5/8″
5D9562 1828X203X16 13 5/8″ 9W2301 2438x152x13 10 5/8″
7D1577 2133X203X19 15 3/4″ 9W2299 2133x152x13 9 5/8″
7D1949 2438X203X19 17 3/4″ 9W2302 2438x152x13 10 3/4″
7D1588 2133X203X16 15 3/4″ 9W2309 1219x203x13 6 5/8″
4T2244 1828X203X25 13 5/8″ 8J9821 2438x203x16 17 3/4″
4T2242 2133X203X25 15 5/8″ 9W2297 1828x152x13 8 5/8″
4T2236 2438X203X25 17 3/4″ 234-70-12670 2133x203x19 15 5/8″
9J3658 2133X152X16 15 3/4″ 234-70-12710 2133x203x16 15 3/4″
7D4508 1524X152X16 11 5/8″ 234-70-12193 2133x152x16 15 5/8″
5D9556 1828X152X19 13 5/8″ 4T3036 2133x203x19 15 5/8″
5D9557 2133X152X19 15 5/8″ 4T3007 1828x203x19 13 5/8″
3G7966 1524X152X19 11 5/8″ 4T3034 1524x203x19 11 5/8″
9J3657 1828X152X16 13 3/4″ 4T3037 2438x203x19 17 3/4″
1. You are a trader or a manufacture?MITNIK MACHINE PARTS with one-stop shopping platform for engineering construction machinery parts as MITNIK have our own factory and storage warehouse and some parts of them were supply by our Joint Stock Partnership to ensure to provide excellent products and service to our customers, at competitive prices.We are manufactuer and trade integration business, our factory located on Quanzhou Nanan Distric, and our sales department is in City centre of Xiamen.
2. How can I be sure the part will fit my excavator?Give us correct model number/machine serial number/ any numbers on the parts itself. Or measure the parts give us dimension or drawing.
3. How about the payment terms?We usually accept T/T or Trade Assurance. other terms also could be negotiated.
4. What is your minimum order?It depends on what you are buying. Normally, our minimum order is one 20’ full container and LCL container (less than a container load) can be acceptable.
5. What is your delivery time?FOB Xiamen or any Chinese port : 20 days . If there are any parts in stock , our delivery time is only 0-7 days.
6. What about Quality Control?We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
MITNIK MACHINE PARTS is the worldwide leader Bulldozer & Excavator Undercarriage Manufacturer in replacement parts and original parts and accessories for Engineering Machine, Construction Machine, Industrial Truck and Agricultural Equipment over 20 years old, and MITNIK can do OEM&ODM for engineering machine parts. Our mission is to provide excellent products and service to our customers, at competitive prices. We stock an extensive range, so, whether you are looking for a single tractor part or wholesale replacement parts MITNIK MACHINE PARTS has it covered. MITNINK MACHINE PARTS-MMP is an excellent source for original and aftermarket components and parts. We can provide the main major road construction machine parts and excavator&bulldozer parts. MITNIKMACHINEPARTS-MMP is an excellent source for used, rebuilt, refurbished and aftermarket components and parts. We can provide the main major road construction machine parts and excavator&bulldozer parts brands such as: Komatsu Caterpillar Volvo JCB Terex. Kobelco Hyundai Doosan John Deere Hitachi Takeuchi Sanyi MITNIK MACHINE PARTS, new spare parts range for heavy construction equipment focuses on excavator&bulldozer undercarriage, engaging tools, engine parts, hydraulic parts, dump truck parts, concrete machine parts. Within those spare parts, key attention lies on parts for the makes Bobcat, Case, Caterpillar, JCB, Takeuchi, John Deere, Kubota, Volvo and Yanmar etc...., while also offering extensive lookup services for other brands. We have more than 3 million parts on hand across more than 30,000 different part types covering all makes and models. MISSION MITNIK MACHINE PARTS-MMP to offer integrated and value-added part supply and full lines of equipment parts solution to our partners and customers with assuranced quality parts. SERVICE MITNIK MACHINE PARTS-MMP with one-stop shopping platform for engineering construction machinery parts as MITNIK have our own factory and storage warehouse and some parts of them were supply by our Joint Stock Partnership to ensure to provide excellent products and service to our customers, at competitive prices. To offer an excellent source for used, rebuilt, refurbished and aftermarket components and parts. We can provide Construction Machine, Heavy Equipment, and related Equipment Parts sucha as road construction machine parts and excavator&bulldozer parts etc..... QUALIFEID Our company has established a complete quality control system. We have several labs with all kinds of Mechanic & Chemical Property Testing Equipments. We do IQC, IPQC, FQC to guarantee our quality. Our company are certified ISO9001:2008,ISO14001:2004 and OHSMS18001. We have won many honors, such as “ Product and Service Recommended Enterprises”,“Quality Management Advanced Enterprise”, etc.
Please verify part number prior to order.
Thanks for viewing our listings. Please click "Ask A Question", or call us if you have a parts need that you do not see listed here.
We will do our best to locate the parts you need, and make every effort to save you money.
